KDA源码剖析之FlashKDA（上）

前置知识：KDA算法公式、triton、cuda、c++

仓库链接：MoonshotAI/FlashKDA: FlashKDA: high-performance Kimi Delta Attention kernels

公式回顾

kernel 1 代码

代码链接：FlashKDA/csrc/smxx/fwd_kernel1.cuh at master · MoonshotAI/FlashKDA

 // ===== Launch Kernel 1 (prepare) =====
#if BLOCK_LEVEL_K1 >= 0
    {
        constexpr int kK1Threads = 256;
        using SharedStorageK1T = SharedStorageK1<K1L>;
        int smem_size_k1 = sizeof(SharedStorageK1T);

        auto kernel1 = _flash_kda_fwd_prepare<
            decltype(tma_load_q), decltype(tma_load_k),
            decltype(tma_load_beta),
            decltype(tma_load_g), decltype(tma_load_dt_bias),
            decltype(tma_store_ws_kd), decltype(tma_store_ws_qd), decltype(tma_store_ws_kr),
            decltype(tma_store_ws_gt), decltype(tma_store_ws_inv), decltype(tma_store_ws_mqk),
            CHUNK, D, kK1Threads, IsVarlen
        >;

        cudaFuncSetAttribute(kernel1, cudaFuncAttributeMaxDynamicSharedMemorySize, smem_size_k1);

        dim3 grid_k1(total_tiles, H);
        dim3 block_k1(kK1Threads);

        kernel1<<<grid_k1, block_k1, smem_size_k1, stream>>>(
            tma_load_q, tma_load_k, tma_load_beta,
            tma_load_g, tma_load_dt_bias,
            tma_store_ws_kd, tma_store_ws_qd, tma_store_ws_kr,
            tma_store_ws_gt, tma_store_ws_inv, tma_store_ws_mqk,
            scale, T_total, H, N, cu_seqlens_ptr, total_tiles,
            A_log_ptr, gate_scale
        );
    }
#endif


#pragma once

#include "utils.cuh"

template <int D, int CHUNK = 16>
struct K1Layouts {
    using QKLayout = decltype(make_layout(make_shape(Int<CHUNK>{}, Int<D>{}), LayoutRight{}));
    using GLayout = decltype(make_layout(make_shape(Int<CHUNK>{}, Int<D>{}), LayoutRight{}));
    using MMALayout = decltype(tile_to_shape(
        GMMA::Layout_K_INTER_Atom<cute::bfloat16_t>{},
        make_shape(Int<CHUNK>{}, Int<D>{}),
        LayoutLeft{}
    ));
    using BetaSmemLayout = Layout<Shape<Int<32>>, Stride<Int<1>>>;
    using GTotalLayout = Layout<Shape<Int<D>>, Stride<Int<1>>>;
    using LMLayout = decltype(tile_to_shape(
        GMMA::Layout_K_INTER_Atom<cute::bfloat16_t>{},
        make_shape(Int<CHUNK>{}, Int<CHUNK>{}),
        LayoutLeft{}
    ));
    using TransposedLMLayout = decltype(tile_to_shape(
        GMMA::Layout_MN_INTER_Atom<cute::bfloat16_t>{},
        make_shape(Int<CHUNK>{}, Int<CHUNK>{}),
        LayoutRight{}
    ));

    using TMABetaSmemLayout = BetaSmemLayout;  // 1D TMA, no dummy dim
    using TMAQKLayout = decltype(prepend(QKLayout{}));
    using TMAVOLayout = decltype(composition(
        MMALayout{}.layout_a(),
        MMALayout{}.offset(),
        prepend(MMALayout{}.layout_b())
    ));
    using TMAGLayout = decltype(prepend(GLayout{}));
    using TMALMLayout = decltype(composition(
        LMLayout{}.layout_a(),
        LMLayout{}.offset(),
        prepend(LMLayout{}.layout_b())
    ));
    using TMAGTotalSmemLayout = decltype(prepend(GTotalLayout{}));
};

template <class Layouts>
struct SharedStorageK1 {
    using BF16 = cutlass::bfloat16_t;
    using QKLayout = typename Layouts::QKLayout;
    using GLayout = typename Layouts::GLayout;
    using BetaSmemLayout = typename Layouts::BetaSmemLayout;
    using GTotalLayout = typename Layouts::GTotalLayout;
    using LMLayout = typename Layouts::LMLayout;
    using MMALayout = typename Layouts::MMALayout;

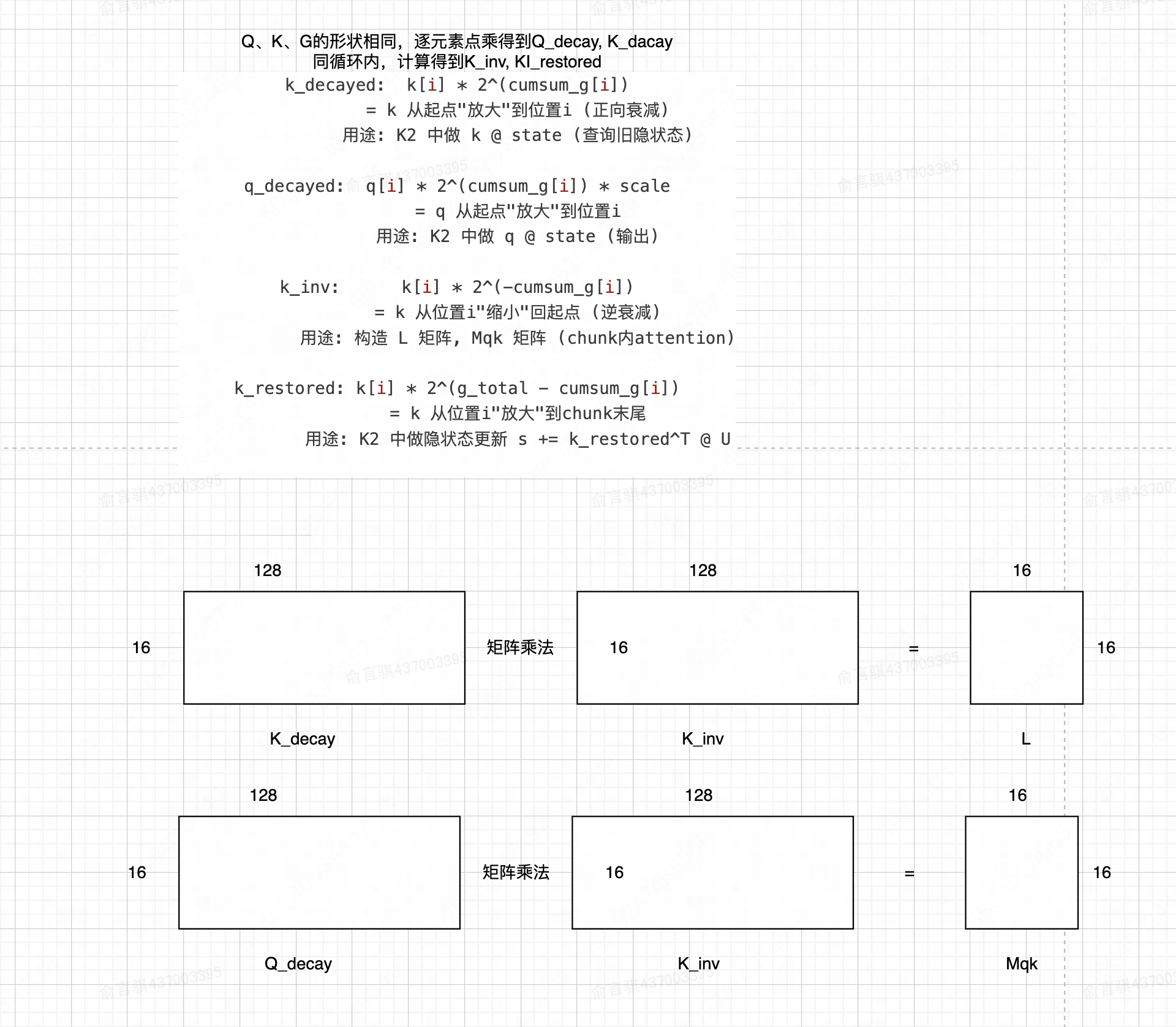

    // Phase A: q, k, g alive
    // Phase B: k_decayed, q_decayed, k_inv, L, INV, Mqk alive
    // These don't overlap → union saves ~14KB shared memory
    union {
        struct {
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<QKLayout>> q;
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<QKLayout>> k;
            alignas(128) cute::ArrayEngine<float, cute::cosize_v<GLayout>> g;
        };
        struct {
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<MMALayout>> k_decayed;
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<MMALayout>> q_decayed;
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<MMALayout>> k_inv;
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<LMLayout>> L;
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<LMLayout>> INV;
            alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<LMLayout>> Mqk;
        };
    };

    alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<BetaSmemLayout>> beta;

    union {
        alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<QKLayout>> g_bf16;      // TMA load target
        alignas(128) cute::ArrayEngine<BF16, cute::cosize_v<MMALayout>> k_restored;
    };
    union {
        alignas(128) cute::ArrayEngine<float, cute::cosize_v<GTotalLayout>> dt_bias;  // TMA load target
        alignas(128) cute::ArrayEngine<float, cute::cosize_v<GTotalLayout>> g_total;
    };
    alignas(16) cutlass::arch::ClusterTransactionBarrier tma_load_barrier;
};

// ==================== Kernel 1: Prepare ====================
template <
    class TmaLoadQ,
    class TmaLoadK,
    class TmaLoadBeta,
    class TmaLoadG,
    class TmaLoadDtBias,
    class TmaStoreWsKD, class TmaStoreWsQD, class TmaStoreWsKR,
    class TmaStoreWsGT, class TmaStoreWsINV, class TmaStoreWsMqk,
    int CHUNK,
    int D,
    int NumThreads,
    bool IsVarlen = true
>
__global__ void __launch_bounds__(NumThreads, 8) _flash_kda_fwd_prepare(
    CUTE_GRID_CONSTANT TmaLoadQ const tma_load_q,
    CUTE_GRID_CONSTANT TmaLoadK const tma_load_k,
    CUTE_GRID_CONSTANT TmaLoadBeta const tma_load_beta,
    CUTE_GRID_CONSTANT TmaLoadG const tma_load_g,
    CUTE_GRID_CONSTANT TmaLoadDtBias const tma_load_dt_bias,
    CUTE_GRID_CONSTANT TmaStoreWsKD const tma_store_ws_kd,
    CUTE_GRID_CONSTANT TmaStoreWsQD const tma_store_ws_qd,
    CUTE_GRID_CONSTANT TmaStoreWsKR const tma_store_ws_kr,
    CUTE_GRID_CONSTANT TmaStoreWsGT const tma_store_ws_gt,
    CUTE_GRID_CONSTANT TmaStoreWsINV const tma_store_ws_inv,
    CUTE_GRID_CONSTANT TmaStoreWsMqk const tma_store_ws_mqk,
    float scale,
    int T_total,
    int H,
    int N,
    int64_t const* cu_seqlens,
    int total_tiles,
    float const* A_log_ptr,
    float gate_scale
) {
    // --- constants
    using BF16 = cutlass::bfloat16_t;
    using FP16 = cutlass::half_t;
    using Layouts = K1Layouts<D, CHUNK>;
    using MMALayout = typename Layouts::MMALayout;
    using QKLayout = typename Layouts::QKLayout;
    using GLayout = typename Layouts::GLayout;
    using BetaSmemLayout = typename Layouts::BetaSmemLayout;
    using GTotalLayout = typename Layouts::GTotalLayout;
    using LMLayout = typename Layouts::LMLayout;
    using TransposedLMLayout = typename Layouts::TransposedLMLayout;
    using TMAQKLayout = typename Layouts::TMAQKLayout;
    using TMABetaSmemLayout = typename Layouts::TMABetaSmemLayout;
    using TMAVOLayout = typename Layouts::TMAVOLayout;
    using TMALMLayout = typename Layouts::TMALMLayout;
    using TMAGTotalSmemLayout = typename Layouts::TMAGTotalSmemLayout;
    constexpr uint32_t kTmaTransactionBytes =
        uint32_t(cute::cosize_v<QKLayout>) * uint32_t(3 * sizeof(BF16)) +  // q + k + g_bf16
        uint32_t(32) * uint32_t(sizeof(BF16)) +  // beta (bf16, sigmoid fused)
        uint32_t(D) * uint32_t(sizeof(float));  // dt_bias

    // --- shared memory
    extern __shared__ __align__(128) unsigned char shared_mem[];
    using SharedStorageT = SharedStorageK1<Layouts>;
    SharedStorageT& shared_storage = *reinterpret_cast<SharedStorageT*>(shared_mem);

    // --- per-CTA tile info
    int global_tile_idx = blockIdx.x;
    int head_idx = blockIdx.y;
    int seq_idx, tiles_before, local_t;
    int64_t bos, eos;
    int seq_len, t_tiles_this_seq;

    if constexpr (IsVarlen) {
        // Linear scan on cu_seqlens to find (seq_idx, local_t)
        seq_idx = 0;
        tiles_before = 0;
        for (int i = 0; i < N; i++) {
            int slen = int(cu_seqlens[i + 1] - cu_seqlens[i]);
            int n_tiles = (slen + CHUNK - 1) / CHUNK;
            if (tiles_before + n_tiles > global_tile_idx) {
                seq_idx = i;
                break;
            }
            tiles_before += n_tiles;
        }
        local_t = global_tile_idx - tiles_before;
        bos = cu_seqlens[seq_idx];
        eos = cu_seqlens[seq_idx + 1];
    } else {
        int T_seq = T_total / N;
        int tiles_per_seq = (T_seq + CHUNK - 1) / CHUNK;
        seq_idx = global_tile_idx / tiles_per_seq;
        tiles_before = seq_idx * tiles_per_seq;
        local_t = global_tile_idx - tiles_before;
        bos = seq_idx * T_seq;
        eos = bos + T_seq;
    }
    seq_len = int(eos - bos);
    t_tiles_this_seq = (seq_len + CHUNK - 1) / CHUNK;
    // Early exit for excess CTAs (total_tiles is an upper bound)
    if (local_t >= t_tiles_this_seq) return;
    // --- TMA load inputs (single-shot, no pipeline)
    // Only thread 0 issues TMA loads (not elect_one_sync which is per-warp)
    if (threadIdx.x == 0) {
        using BarrierType = cutlass::arch::ClusterTransactionBarrier::ValueType;
        shared_storage.tma_load_barrier.init(1);
        shared_storage.tma_load_barrier.arrive_and_expect_tx(kTmaTransactionBytes);

        Tensor g_q = tma_load_q.get_tma_tensor(make_shape(H, T_total, D));
        Tensor g_k = tma_load_k.get_tma_tensor(make_shape(H, T_total, D));
        Tensor g_beta = tma_load_beta.get_tma_tensor(make_shape(H * T_total));

        auto cta_tma_load_q = tma_load_q.get_slice(Int<0>{});
        auto cta_tma_load_k = tma_load_k.get_slice(Int<0>{});
        auto cta_tma_load_beta = tma_load_beta.get_slice(Int<0>{});

        auto qk_off = g_q.layout()(head_idx, int(bos) + local_t * CHUNK, 0);
        auto tile_shape_3d = make_shape(Int<1>{}, Int<CHUNK>{}, Int<D>{});
        auto tile_stride_3d = stride(g_q.layout());
        Tensor g_q_tile = make_tensor(g_q.data() + qk_off, make_layout(tile_shape_3d, tile_stride_3d));
        Tensor g_k_tile = make_tensor(g_k.data() + qk_off, make_layout(tile_shape_3d, tile_stride_3d));

        int beta_linear = head_idx * T_total + (int(bos) + local_t * CHUNK);
        int beta_aligned = beta_linear & ~7;
        auto beta_off = g_beta.layout()(beta_aligned);
        Tensor g_beta_tile = make_tensor(g_beta.data() + beta_off, BetaSmemLayout{});

        Tensor s_q_tile = make_tensor(make_smem_ptr(shared_storage.q.begin()), TMAQKLayout{});
        Tensor s_k_tile = make_tensor(make_smem_ptr(shared_storage.k.begin()), TMAQKLayout{});
        Tensor s_beta_tile = make_tensor(make_smem_ptr(shared_storage.beta.begin()), TMABetaSmemLayout{});

        cute::copy(tma_load_q.with(reinterpret_cast<BarrierType&>(shared_storage.tma_load_barrier)),
            cta_tma_load_q.partition_S(g_q_tile), cta_tma_load_q.partition_D(s_q_tile));
        cute::copy(tma_load_k.with(reinterpret_cast<BarrierType&>(shared_storage.tma_load_barrier)),
            cta_tma_load_k.partition_S(g_k_tile), cta_tma_load_k.partition_D(s_k_tile));
        cute::copy(tma_load_beta.with(reinterpret_cast<BarrierType&>(shared_storage.tma_load_barrier)),
            cta_tma_load_beta.partition_S(g_beta_tile), cta_tma_load_beta.partition_D(s_beta_tile));

        // TMA load g_bf16 (same gmem layout as q/k)
        Tensor g_g = tma_load_g.get_tma_tensor(make_shape(H, T_total, D));
        auto cta_tma_load_g = tma_load_g.get_slice(Int<0>{});
        Tensor g_g_tile = make_tensor(g_g.data() + qk_off, make_layout(tile_shape_3d, tile_stride_3d));
        Tensor s_g_bf16_tile = make_tensor(make_smem_ptr(shared_storage.g_bf16.begin()), TMAQKLayout{});
        cute::copy(tma_load_g.with(reinterpret_cast<BarrierType&>(shared_storage.tma_load_barrier)),
            cta_tma_load_g.partition_S(g_g_tile), cta_tma_load_g.partition_D(s_g_bf16_tile));

        // TMA load dt_bias [H, D] → [D] slice for current head
        Tensor g_dt = tma_load_dt_bias.get_tma_tensor(make_shape(H, D));
        auto cta_tma_load_dt = tma_load_dt_bias.get_slice(Int<0>{});
        auto dt_off = g_dt.layout()(head_idx, 0);
        Tensor g_dt_tile = make_tensor(g_dt.data() + dt_off,
            make_layout(make_shape(Int<1>{}, Int<D>{}), stride(g_dt.layout())));
        Tensor s_dt_tile = make_tensor(make_smem_ptr(shared_storage.dt_bias.begin()), TMAGTotalSmemLayout{});
        cute::copy(tma_load_dt_bias.with(reinterpret_cast<BarrierType&>(shared_storage.tma_load_barrier)),
            cta_tma_load_dt.partition_S(g_dt_tile), cta_tma_load_dt.partition_D(s_dt_tile));
    }

    // --- Compute a_log_exp (overlaps with TMA)
    float a_log_exp = expf(A_log_ptr[head_idx]);
    // --- Wait for TMA (q, k, beta, g_bf16, dt_bias)
    __syncthreads();
    shared_storage.tma_load_barrier.wait(0);
    cutlass::arch::fence_view_async_shared();
    __syncthreads();

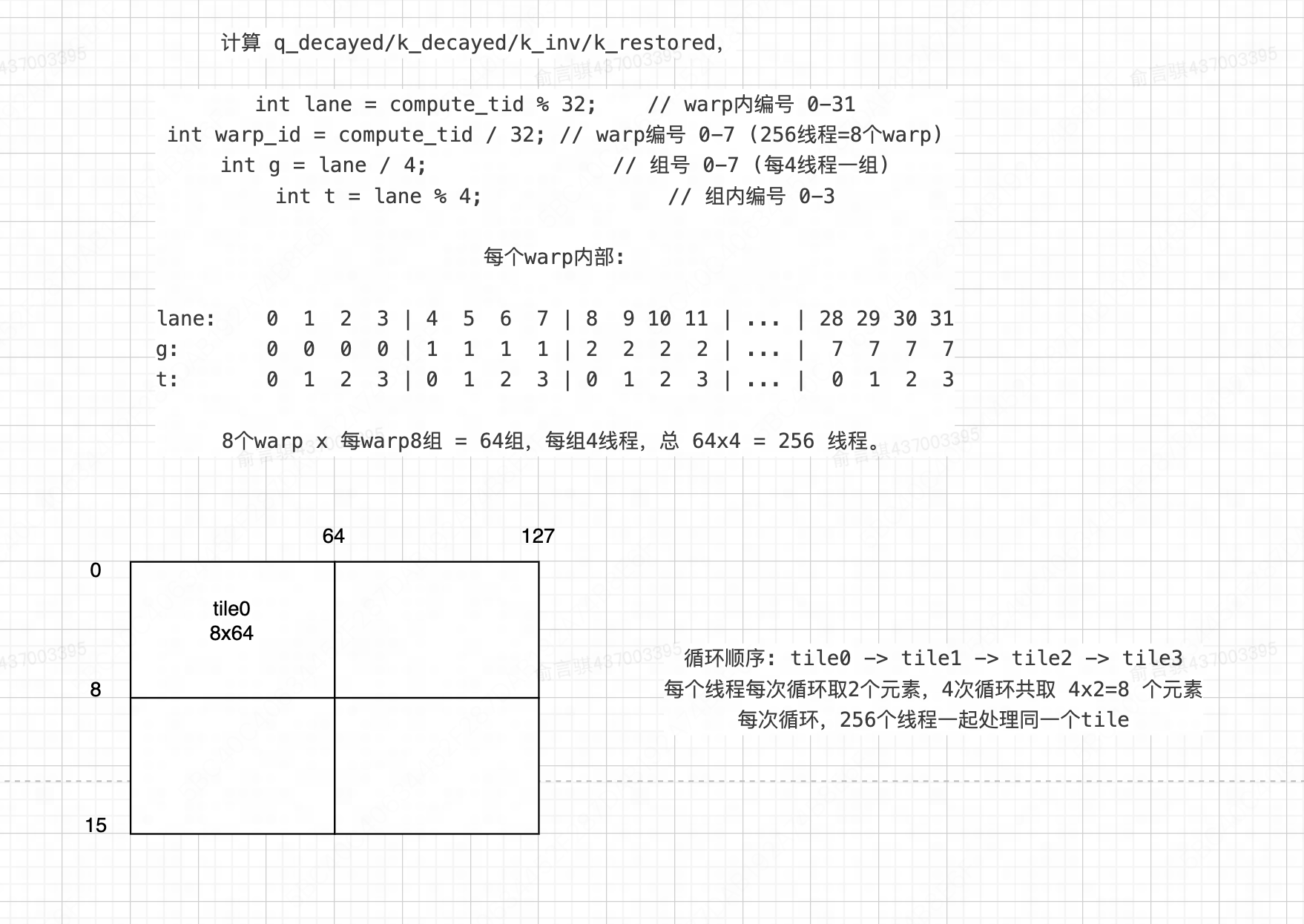

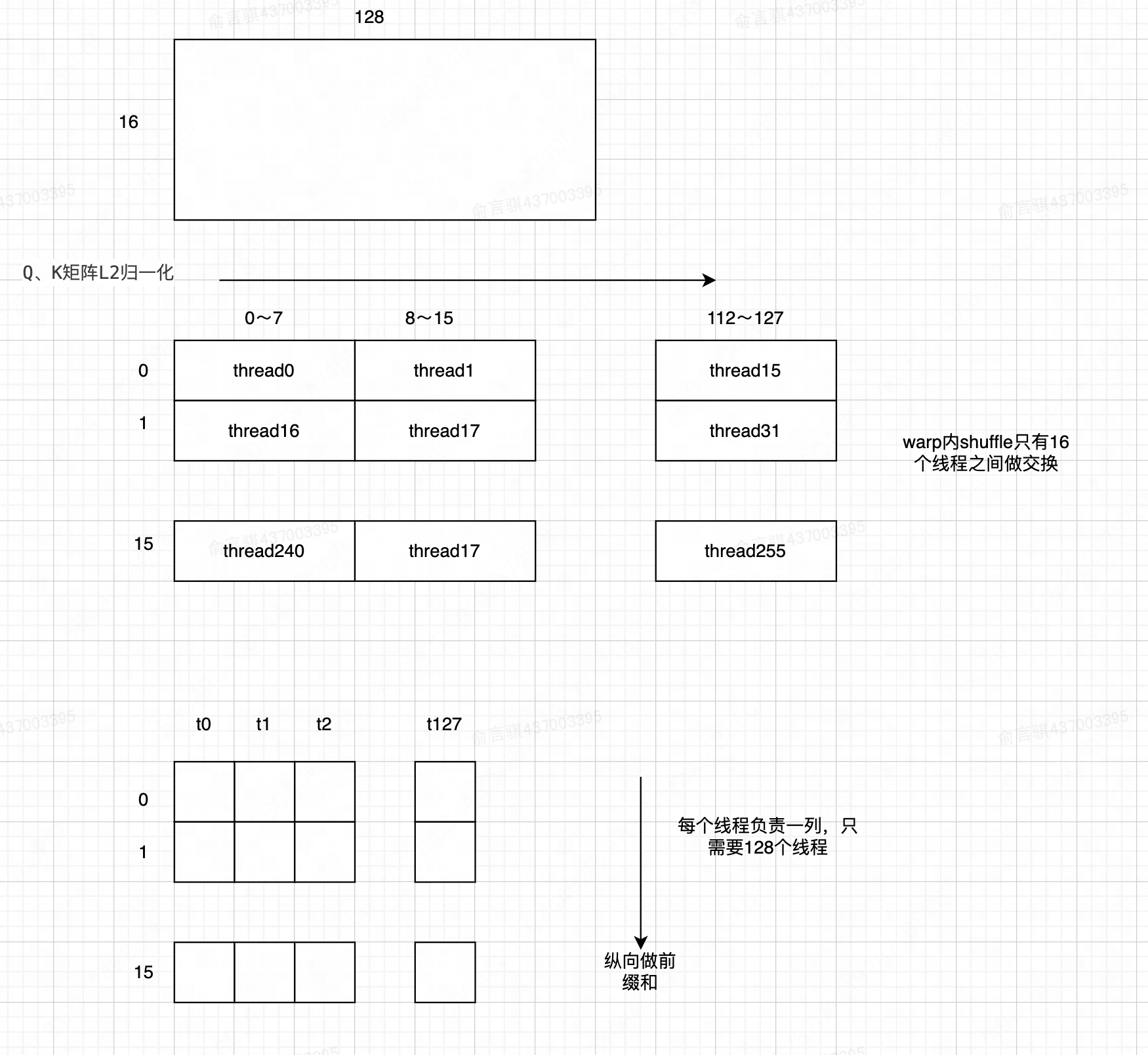

    // --- QK L2 Normalization ---
    int compute_tid = threadIdx.x;
    {
        constexpr int ELEMS_PER_THREAD = 8;
        constexpr int THREADS_PER_ROW = D / ELEMS_PER_THREAD;  // 16
        int my_row = threadIdx.x / THREADS_PER_ROW;
        int my_col = (threadIdx.x % THREADS_PER_ROW) * ELEMS_PER_THREAD;

        BF16* q_smem = shared_storage.q.begin();
        BF16* k_smem = shared_storage.k.begin();

        float q_vals[ELEMS_PER_THREAD], k_vals[ELEMS_PER_THREAD];
        float q_sq = 0.0f, k_sq = 0.0f;

        #pragma unroll
        for (int i = 0; i < ELEMS_PER_THREAD; ++i) {
            float qv = bf16_to_f32(q_smem[my_row * D + my_col + i]);
            float kv = bf16_to_f32(k_smem[my_row * D + my_col + i]);
            q_vals[i] = qv;
            k_vals[i] = kv;
            q_sq += qv * qv;
            k_sq += kv * kv;
        }

        #pragma unroll
        for (int delta = 8; delta >= 1; delta >>= 1) {
            q_sq += __shfl_xor_sync(0xFFFFFFFF, q_sq, delta);
            k_sq += __shfl_xor_sync(0xFFFFFFFF, k_sq, delta);
        }

        float q_inv = rsqrtf(q_sq + 1e-6f);
        float k_inv = rsqrtf(k_sq + 1e-6f);

        #pragma unroll
        for (int i = 0; i < ELEMS_PER_THREAD; ++i) {
            q_smem[my_row * D + my_col + i] = BF16(q_vals[i] * q_inv);
            k_smem[my_row * D + my_col + i] = BF16(k_vals[i] * k_inv);
        }
    }
    __syncthreads();

    // --- Fused gate activation + cumsum + k tail zero-fill ---
    // Threads 0-127: gate(g_bf16 + dt_bias) → cumulative sum, eliminates raw-g smem round-trip
    // Threads 128-255: zero k for tail rows
    {
        int actual_len = min(CHUNK, seq_len - local_t * CHUNK);
        if (compute_tid < 128) {
            int col = compute_tid;
            BF16 const* g_bf16_smem = shared_storage.g_bf16.begin();
            float dt = shared_storage.dt_bias.begin()[col];
            float* g_smem = shared_storage.g.begin();
            float sum = 0.0f;
            #pragma unroll
            for (int row = 0; row < CHUNK; ++row) {
                float g_val;
                if (row < actual_len) {
                    g_val = bf16_to_f32(g_bf16_smem[row * D + col]) + dt;
                    g_val = a_log_exp * g_val;
                    g_val = gate_scale * sigmoid_tanh_approx_f32(g_val);
                } else {
                    g_val = 0.0f;
                }
                sum += g_val;
                g_smem[row * D + col] = sum;
            }
            shared_storage.g_total.begin()[col] = sum;
        } else {
            int col = compute_tid - 128;
            BF16* k_smem = shared_storage.k.begin();
            for (int row = actual_len; row < CHUNK; ++row) {
                k_smem[row * D + col] = BF16(0);
            }
        }
    }
    __syncthreads();

    Tensor q_tile = make_tensor(make_smem_ptr(shared_storage.q.begin()), QKLayout{});
    Tensor k_tile = make_tensor(make_smem_ptr(shared_storage.k.begin()), QKLayout{});
    Tensor g_tile = make_tensor(make_smem_ptr(shared_storage.g.begin()), GLayout{});
    Tensor beta_tile = make_tensor(make_smem_ptr(shared_storage.beta.begin()), BetaSmemLayout{});
    int beta_smem_offset = (head_idx * T_total + int(bos) + local_t * CHUNK) & 7;

    Tensor k_restored = make_tensor(make_smem_ptr(shared_storage.k_restored.begin()), MMALayout{});
    Tensor k_decayed = make_tensor(make_smem_ptr(shared_storage.k_decayed.begin()), MMALayout{});
    Tensor q_decayed = make_tensor(make_smem_ptr(shared_storage.q_decayed.begin()), MMALayout{});
    Tensor k_inv = make_tensor(make_smem_ptr(shared_storage.k_inv.begin()), MMALayout{});
    Tensor g_total = make_tensor(make_smem_ptr(shared_storage.g_total.begin()), GTotalLayout{});

    // exp_g_total: compute exp(g_total) in smem before decay_apply
    if (compute_tid < 128) {
        float x = g_total(compute_tid);
        g_total(compute_tid) = ex2_approx_ftz_f32(x);
    }
    __syncthreads();

// decay_apply
    if (compute_tid < 256) {
        static_assert(D % 64 == 0);
        static_assert(CHUNK % 8 == 0);

        int lane = compute_tid % 32;
        int warp_id = compute_tid / 32;
        int g = lane / 4;
        int t = lane % 4;

        auto vec8_2d = make_shape(_1{}, _8{});
        auto vec8_1d = make_shape(_8{});
        auto thr2_2d = make_shape(_1{}, _2{});
        auto thr2_1d = make_shape(_2{});

        constexpr int N_M = CHUNK / 8;
        constexpr int N_N = D / 64;
        constexpr int N_TILES = N_M * N_N;

        float reg_g[N_TILES][2];
        BF16  reg_q[N_TILES][2];
        BF16  reg_k[N_TILES][2];
        float reg_gt[N_TILES][2];

        #pragma unroll
        for (int m_blk = 0; m_blk < CHUNK; m_blk += 8) {
            #pragma unroll
            for (int n_blk = 0; n_blk < D; n_blk += 64) {
                int tile_idx = (m_blk / 8) * N_N + (n_blk / 64);

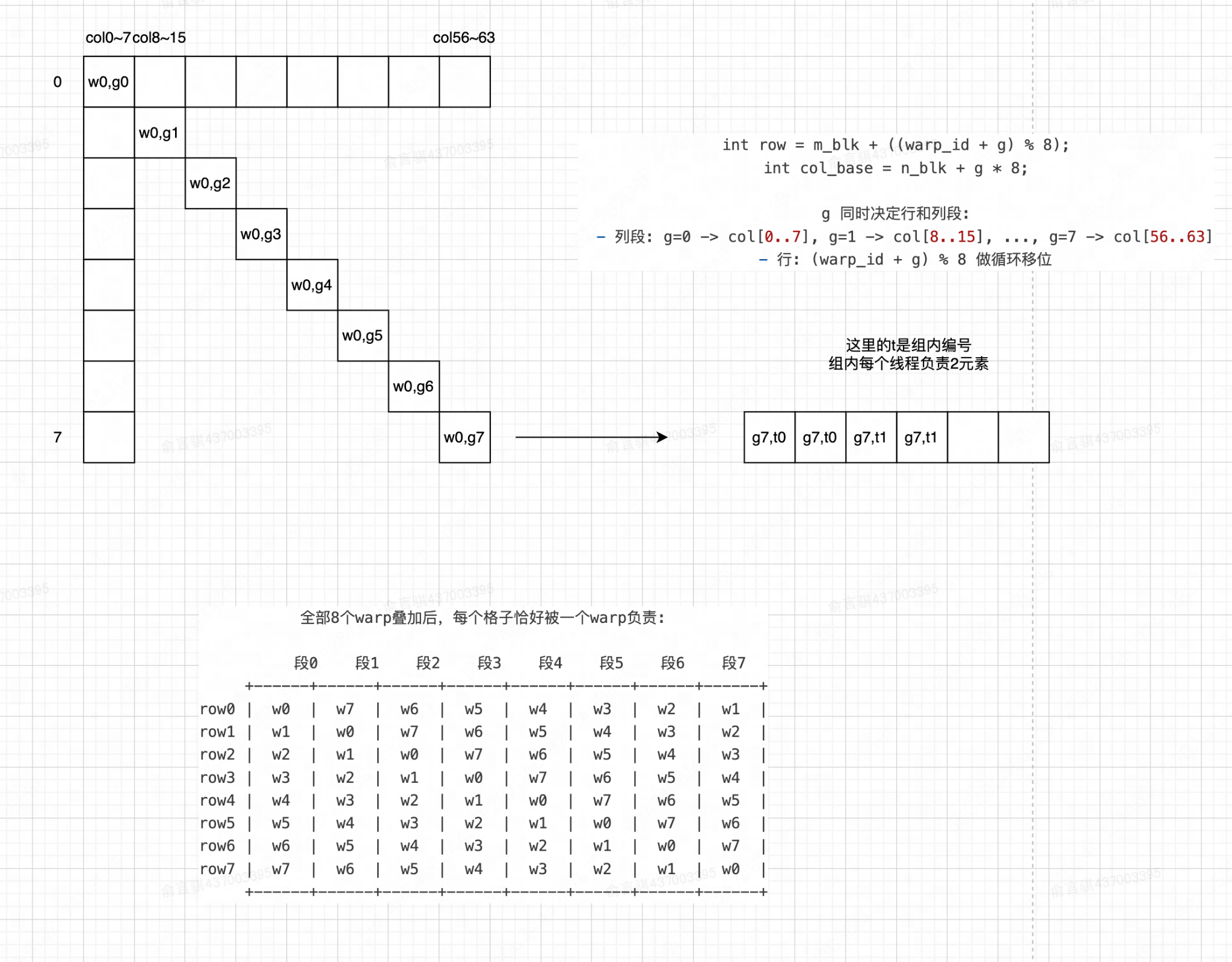

                int row = m_blk + ((warp_id + g) % 8);
                int col_base = n_blk + g * 8;
                int col_tile = col_base / 8;

                Tensor tile_g  = local_tile(g_tile, vec8_2d, make_coord(row, col_tile));
                Tensor tile_q  = local_tile(q_tile, vec8_2d, make_coord(row, col_tile));
                Tensor tile_k  = local_tile(k_tile, vec8_2d, make_coord(row, col_tile));
                Tensor tile_gt = local_tile(g_total, vec8_1d, make_coord(col_tile));

                Tensor s_g  = local_tile(tile_g,  thr2_2d, make_coord(0, t));
                Tensor s_q  = local_tile(tile_q,  thr2_2d, make_coord(0, t));
                Tensor s_k  = local_tile(tile_k,  thr2_2d, make_coord(0, t));
                Tensor s_gt = local_tile(tile_gt, thr2_1d, make_coord(t));

                Tensor r_g  = make_tensor_like<float>(s_g);
                Tensor r_q  = make_tensor_like<BF16>(s_q);
                Tensor r_k  = make_tensor_like<BF16>(s_k);
                Tensor r_gt = make_tensor_like<float>(s_gt);

                cute::copy(AutoVectorizingCopy{}, s_g, r_g);
                cute::copy(AutoVectorizingCopy{}, s_q, r_q);
                cute::copy(AutoVectorizingCopy{}, s_k, r_k);
                cute::copy(AutoVectorizingCopy{}, s_gt, r_gt);

                #pragma unroll
                for (int v = 0; v < 2; ++v) {
                    reg_g[tile_idx][v]  = r_g(0, v);
                    reg_q[tile_idx][v]  = r_q(0, v);
                    reg_k[tile_idx][v]  = r_k(0, v);
                    reg_gt[tile_idx][v] = r_gt(v);
                }
            }
        }

        // Sync before writing to union'd smem (q/k/g → k_decayed/q_decayed/k_inv)
        // Safe: all 256 threads enter this if block (compute_tid < 256 always true)
        __syncthreads();

        #pragma unroll
        for (int m_blk = 0; m_blk < CHUNK; m_blk += 8) {
            #pragma unroll
            for (int n_blk = 0; n_blk < D; n_blk += 64) {
                int tile_idx = (m_blk / 8) * N_N + (n_blk / 64);
                int row = m_blk + ((warp_id + g) % 8);
                int col_base = n_blk + g * 8;
                int col_tile = col_base / 8;

                Tensor tile_qd = local_tile(q_decayed, vec8_2d, make_coord(row, col_tile));
                Tensor tile_kd = local_tile(k_decayed, vec8_2d, make_coord(row, col_tile));
                Tensor tile_kr = local_tile(k_restored, vec8_2d, make_coord(row, col_tile));
                Tensor tile_ki = local_tile(k_inv, vec8_2d, make_coord(row, col_tile));

                Tensor s_qd = local_tile(tile_qd, thr2_2d, make_coord(0, t));
                Tensor s_kd = local_tile(tile_kd, thr2_2d, make_coord(0, t));
                Tensor s_kr = local_tile(tile_kr, thr2_2d, make_coord(0, t));
                Tensor s_ki = local_tile(tile_ki, thr2_2d, make_coord(0, t));

                Tensor r_qd = make_tensor_like<BF16>(s_qd);
                Tensor r_kd = make_tensor_like<BF16>(s_kd);
                #pragma unroll
                for (int v = 0; v < 2; ++v) {
                    float g = reg_g[tile_idx][v];
                    BF16 q = reg_q[tile_idx][v];
                    BF16 k = reg_k[tile_idx][v];
                    BF16 exp_cumsum = BF16(ex2_approx_ftz_f32(g));
                    r_qd(0, v) = q * exp_cumsum * BF16(scale);
                    r_kd(0, v) = k * exp_cumsum;
                }
                cute::copy(AutoVectorizingCopy{}, r_qd, s_qd);
                cute::copy(AutoVectorizingCopy{}, r_kd, s_kd);

                Tensor r_ki = make_tensor_like<BF16>(s_ki);
                Tensor r_kr = make_tensor_like<BF16>(s_kr);
                #pragma unroll
                for (int v = 0; v < 2; ++v) {
                    float g = reg_g[tile_idx][v];
                    BF16 k = reg_k[tile_idx][v];
                    BF16 inv_cumsum = BF16(ex2_approx_ftz_f32(-g));
                    r_ki(0, v) = k * inv_cumsum;
                    r_kr(0, v) = k * inv_cumsum * BF16(reg_gt[tile_idx][v]);
                }
                cute::copy(AutoVectorizingCopy{}, r_ki, s_ki);
                cute::copy(AutoVectorizingCopy{}, r_kr, s_kr);
            }
        }

    }
    __syncthreads();

    Tensor L = make_tensor(make_smem_ptr(shared_storage.L.begin()), LMLayout{});
    Tensor Mqk = make_tensor(make_smem_ptr(shared_storage.Mqk.begin()), LMLayout{});
    Tensor L_fp16 = make_tensor(make_smem_ptr(reinterpret_cast<FP16*>(shared_storage.L.begin())), LMLayout{});

// L_Mqk
    if (compute_tid < 32) {
        mma_m16n16_bf16bf16fp16_1warp(k_decayed, k_inv, L_fp16, compute_tid);
    } else if (compute_tid >= 32 && compute_tid < 64) {
        mma_m16n16_bf16bf16bf16_1warp(q_decayed, k_inv, Mqk, compute_tid - 32);
    }
    __syncthreads();

    Tensor INV = make_tensor(make_smem_ptr(shared_storage.INV.begin()), LMLayout{});
    Tensor INV_fp16 = make_tensor(make_smem_ptr(reinterpret_cast<FP16*>(shared_storage.INV.begin())), LMLayout{});

// tril_IL + INV = I - L (merged, same thread same element)
    if (compute_tid < 256) {
        const int col_block_size = 8;
        int block_idx = compute_tid / (CHUNK * col_block_size);
        int i = (compute_tid / col_block_size) % CHUNK;
        int j = compute_tid % col_block_size + block_idx * col_block_size;
        if (i <= j) {
            L_fp16(i, j) = FP16::bitcast(0);
        } else {
            L_fp16(i, j) = L_fp16(i, j) * FP16(sigmoid_tanh_approx_f32(float(beta_tile(beta_smem_offset + i))));
        }
        if (i < j) {
            Mqk(i, j) = BF16::bitcast(0);
        }
        // INV = I - L (same thread reads L(i,j) it just wrote)
        FP16 x = L_fp16(i, j);
        INV_fp16(i, j) = (i == j ? FP16(1.0f) - x : -x);
    }
    __syncthreads();

// inv (Neumann series, fused in registers)
    neumann_inv_fused_1warp(L_fp16, INV_fp16, INV, compute_tid);
    // Fence + sync combined: completion + TMA visibility
    cutlass::arch::fence_view_async_shared();
    __syncthreads();
    if (threadIdx.x == 0) {
        int ws_idx = head_idx * total_tiles + global_tile_idx;
        // Store k_decayed [CHUNK, D] bf16
        {
            auto g_ws = tma_store_ws_kd.get_tma_tensor(make_shape(H * total_tiles, CHUNK, D));
            auto ws_off = g_ws.layout()(ws_idx, 0, 0);
            Tensor g_ws_tile = make_tensor(g_ws.data() + ws_off,
                make_layout(make_shape(Int<1>{}, Int<CHUNK>{}, Int<D>{}), stride(g_ws.layout())));
            Tensor s_kd = make_tensor(make_smem_ptr(shared_storage.k_decayed.begin()), TMAVOLayout{});
            auto cta_tma = tma_store_ws_kd.get_slice(Int<0>{});
            cute::copy(tma_store_ws_kd, cta_tma.partition_S(s_kd), cta_tma.partition_D(g_ws_tile));
            tma_store_arrive();
        }
        // Store q_decayed
        {
            auto g_ws = tma_store_ws_qd.get_tma_tensor(make_shape(H * total_tiles, CHUNK, D));
            auto ws_off = g_ws.layout()(ws_idx, 0, 0);
            Tensor g_ws_tile = make_tensor(g_ws.data() + ws_off,
                make_layout(make_shape(Int<1>{}, Int<CHUNK>{}, Int<D>{}), stride(g_ws.layout())));
            Tensor s_qd = make_tensor(make_smem_ptr(shared_storage.q_decayed.begin()), TMAVOLayout{});
            auto cta_tma = tma_store_ws_qd.get_slice(Int<0>{});
            cute::copy(tma_store_ws_qd, cta_tma.partition_S(s_qd), cta_tma.partition_D(g_ws_tile));
            tma_store_arrive();
        }
        // Store k_restored
        {
            auto g_ws = tma_store_ws_kr.get_tma_tensor(make_shape(H * total_tiles, CHUNK, D));
            auto ws_off = g_ws.layout()(ws_idx, 0, 0);
            Tensor g_ws_tile = make_tensor(g_ws.data() + ws_off,
                make_layout(make_shape(Int<1>{}, Int<CHUNK>{}, Int<D>{}), stride(g_ws.layout())));
            Tensor s_kr = make_tensor(make_smem_ptr(shared_storage.k_restored.begin()), TMAVOLayout{});
            auto cta_tma = tma_store_ws_kr.get_slice(Int<0>{});
            cute::copy(tma_store_ws_kr, cta_tma.partition_S(s_kr), cta_tma.partition_D(g_ws_tile));
            tma_store_arrive();
        }
        // Store g_total [D] float
        {
            auto g_ws = tma_store_ws_gt.get_tma_tensor(make_shape(H * total_tiles, D));
            auto ws_off = g_ws.layout()(ws_idx, 0);
            Tensor g_ws_tile = make_tensor(g_ws.data() + ws_off,
                make_layout(make_shape(Int<1>{}, Int<D>{}), stride(g_ws.layout())));
            Tensor s_gt = make_tensor(make_smem_ptr(shared_storage.g_total.begin()), TMAGTotalSmemLayout{});
            auto cta_tma = tma_store_ws_gt.get_slice(Int<0>{});
            cute::copy(tma_store_ws_gt, cta_tma.partition_S(s_gt), cta_tma.partition_D(g_ws_tile));
            tma_store_arrive();
        }
        // Store INV [CHUNK, CHUNK] bf16
        {
            auto g_ws = tma_store_ws_inv.get_tma_tensor(make_shape(H * total_tiles, CHUNK, CHUNK));
            auto ws_off = g_ws.layout()(ws_idx, 0, 0);
            Tensor g_ws_tile = make_tensor(g_ws.data() + ws_off,
                make_layout(make_shape(Int<1>{}, Int<CHUNK>{}, Int<CHUNK>{}), stride(g_ws.layout())));
            Tensor s_inv = make_tensor(make_smem_ptr(shared_storage.INV.begin()), TMALMLayout{});
            auto cta_tma = tma_store_ws_inv.get_slice(Int<0>{});
            cute::copy(tma_store_ws_inv, cta_tma.partition_S(s_inv), cta_tma.partition_D(g_ws_tile));
            tma_store_arrive();
        }
        // Store Mqk [CHUNK, CHUNK] bf16
        {
            auto g_ws = tma_store_ws_mqk.get_tma_tensor(make_shape(H * total_tiles, CHUNK, CHUNK));
            auto ws_off = g_ws.layout()(ws_idx, 0, 0);
            Tensor g_ws_tile = make_tensor(g_ws.data() + ws_off,
                make_layout(make_shape(Int<1>{}, Int<CHUNK>{}, Int<CHUNK>{}), stride(g_ws.layout())));
            Tensor s_mqk = make_tensor(make_smem_ptr(shared_storage.Mqk.begin()), TMALMLayout{});
            auto cta_tma = tma_store_ws_mqk.get_slice(Int<0>{});
            cute::copy(tma_store_ws_mqk, cta_tma.partition_S(s_mqk), cta_tma.partition_D(g_ws_tile));
            tma_store_arrive();
        }
    }
    tma_store_wait<0>();
    __syncthreads();
}

计算流程图

整体剖析

grid: (total_tiles, H) threads: 256

---

第一部分: 数据布局定义 (第5-41行)

template <int D, int CHUNK = 16>
struct K1Layouts {

这是一个模板结构体，定义K1 kernel里所有shared memory的排列方式。 D=128 (head维度), CHUNK=16 (每个chunk的token数)。

QKLayout (第7行)

using QKLayout = make_layout(make_shape(16, 128), LayoutRight{});

形状: [16, 128] LayoutRight: 行主序(row-major)

• 地址 = i * 128 + j
• 总大小 = 16 × 128 = 2048 个元素
• 用途: 存放 TMA 加载进来的原始 q 和 k

MMALayout (第9-13行)

using MMALayout = tile_to_shape(
    GMMA::Layout_K_INTER_Atom<bf16>{},
    make_shape(16, 128),
    LayoutLeft{}
);

什么是 “swizzle 布局”?

• GPU shared memory 分成 32 个 bank，每 bank 4字节宽
• 如果一个 warp 的 32 个线程同时访问同一 bank → bank conflict → 串行化
• Swizzle 布局通过"打乱"地址映射，让线程尽量访问不同 bank

GMMA::Layout_K_INTER_Atom**<bf16>**: CUTLASS 预定义的 swizzle 模式，专门为 bf16 MMA 指令优化，确保加载操作数时无 bank conflict。

tile_to_shape: 把这个原子 swizzle 模式"铺开"到 [16, 128] 的大小 LayoutLeft: 列优先的铺开方式

简单理解: MMALayout 和 QKLayout 存的是同样 16×128 的数据，但 MMALayout 的地址映射经过特殊打乱，让 MMA 指令读取时不冲突。

其他布局 (第14-20行)

布局	形状	用途
BetaSmemLayout	[32], stride=1	beta 加载 (实际只用16个，TMA要求对齐)
GTotalLayout	[128], stride=1	g_total 存128个float
LMLayout	[16,16] swizzle	L 和 Mqk 矩阵
TransposedLMLayout	[16,16] 转置方向	转置版本的 LMLayout

TMA 布局 (第27-40行)

TMA (Tensor Memory Accelerator) 是 Hopper GPU 的硬件单元:

传统做法	TMA做法
线程发load指令	一个线程下一条命令
通过L1/L2 cache	硬件DMA直接搬数据
数据到寄存器 → 写到smem	直接搬整块到smem

好处:

• 不占计算线程的时间，异步执行
• 自动处理2D/3D地址计算(给行列坐标，自动算出全局内存地址)
• 自动处理 swizzle (搬运时直接按 MMALayout 排列)

TMA 布局需要比对应的 smem 布局多一个维度(prepend加了一个size=1的维度)，这是 CUTLASS TMA 接口的要求。

---

第二部分: Shared Memory 结构 (第43-83行)

union 核心 (第56-70行)

union {
    struct { q, k, g };           // Phase A: 加载阶段
    struct { k_decayed, q_decayed, k_inv, L, INV, Mqk };  // Phase B: 计算阶段
};

C++ 的 union 意味着两个 struct 共享同一块内存!

Phase A: 存原始 q, k, g

变量	大小	类型
q	16×128×2 = 4096 字节	bf16
k	16×128×2 = 4096 字节	bf16
g	16×128×4 = 8192 字节	float (cumsum需要fp32)
合计	16384 字节

Phase B: 存计算结果 (共用同一块内存)

变量	大小	类型
k_decayed	16×128×2 = 4096 字节	bf16 (MMALayout)
q_decayed	16×128×2 = 4096 字节	bf16 (MMALayout)
k_inv	16×128×2 = 4096 字节	bf16 (MMALayout)
L	16×16×2 = 512 字节	fp16
INV	16×16×2 = 512 字节	bf16
Mqk	16×16×2 = 512 字节	bf16
合计	13824 字节

两个阶段不重叠(Phase A用完才开始Phase B)，所以可以共用。省了约 14KB shared memory，让 SM 能放更多 CTA (occupancy 更高)。

其他内存区域

alignas(128) bf16 beta[32];              // 不在union里，两个阶段都要用
bf16 k_restored[16][128];                // 与g_bf16共用空间
float g_total[128];                      // 与dt_bias共用空间
ClusterTransactionBarrier tma_load_barrier;  // Hopper硬件同步原语

ClusterTransactionBarrier:

• TMA 是异步的: thread 0 发命令后立即返回，数据还没到

• barrier 用来等 TMA 完成:

• 发 TMA 前: barrier.arrive_and_expect_tx(字节数) — 告诉barrier"将有这么多数据到达"

• 等待: barrier.wait(0) — 阻塞直到所有预期的数据到达

---

第三部分: kernel 函数签名 (第85-119行)

__global__ void __launch_bounds__(NumThreads, 8) _flash_kda_fwd_prepare(...)

关键字	含义
__global__	CUDA kernel 函数
__launch_bounds__(256, 8)	每个CTA最多256线程，目标每SM同时运行8个CTA → 编译器限制寄存器使用，让SM能塞下更多CTA

参数列表 (第100-118行)

CUTE_GRID_CONSTANT TmaLoadQ const tma_load_q
// ... 6个load descriptor和6个store descriptor

CUTE_GRID_CONSTANT 告诉编译器这些参数放在 GPU 的 constant memory 里。

TMA descriptor 包含: 全局内存地址、形状、stride、swizzle模式。thread 用 descriptor 来发起 TMA 操作，硬件自动完成数据搬运。

类型	数量	用途
Load descriptor	6	q, k, beta, g, dt_bias
Store descriptor	6	kd, qd, kr, gt, inv, mqk 到workspace

标量参数:

• scale: 注意力缩放
• T_total: 总token数
• H: head数
• N: 序列数
• total_tiles: 总chunk数
• gate_scale: gate下界×log2e

---

第四部分: 每个CTA确定自己处理哪个chunk (第147-181行)

int global_tile_idx = blockIdx.x;
int head_idx = blockIdx.y;
grid = (total_tiles, H)

• blockIdx.x: 全局chunk编号 (0, 1, …, total_tiles-1)
• blockIdx.y: head编号 (0, 1, …, H-1)

找到当前chunk属于哪个序列

Varlen模式 (多个变长序列拼在一起):

线性扫描 cu_seqlens 数组:
for i in 0..N:
    slen = cu_seqlens[i+1] - cu_seqlens[i]    // 第i个序列长度
    n_tiles = ceil(slen / 16)                 // 第i个序列有几个chunk
    if tiles_before + n_tiles > global_tile_idx:
        seq_idx = i                           // 找到了!
        break
    tiles_before += n_tiles

local_t = global_tile_idx - tiles_before      // chunk在序列内的编号
bos = cu_seqlens[seq_idx]                     // 序列起始token位置
eos = cu_seqlens[seq_idx + 1]                 // 序列结束token位置

非Varlen模式 (所有序列等长):

T_seq = T_total / N
tiles_per_seq = ceil(T_seq / 16)
seq_idx = global_tile_idx / tiles_per_seq
local_t = global_tile_idx % tiles_per_seq
bos = seq_idx * T_seq
eos = bos + T_seq

边界检查

if (local_t >= t_tiles_this_seq) return;

因为 total_tiles 是上界(varlen时可能多分配了一些)，多余的CTA直接退出。

---

第五部分: TMA加载输入数据 (第182-244行)

thread 0 发起所有TMA

if (threadIdx.x == 0) {

只有 thread 0 发 TMA 命令。TMA 是硬件操作，一个线程发命令就够了，其他 255 个线程不需要参与。

初始化 barrier

shared_storage.tma_load_barrier.init(1);
shared_storage.tma_load_barrier.arrive_and_expect_tx(kTmaTransactionBytes);

告诉 barrier “接下来会有 kTmaTransactionBytes 字节的数据到来”。

kTmaTransactionBytes = 3×16×128×2 + 32×2 + 128×4
                     = 3×4096 + 64 + 512
                     = 12864 字节

这是 q + k + g_bf16 + beta + dt_bias 的总大小。

准备TMA地址

Tensor g_q = tma_load_q.get_tma_tensor(make_shape(H, T_total, D));
// get_tma_tensor: 用TMA descriptor构造"虚拟全局tensor"
// 不真正分配内存，只是用来计算坐标到地址的映射

qk_off = g_q.layout()(head_idx, bos + local_t * 16, 0)
// 算出当前(head, chunk起始token, dim=0)在全局内存中的偏移

g_q_tile = make_tensor(g_q.data() + qk_off, ...)
// 构造指向具体数据的 tile (大小 [1, 16, 128])

发起TMA

s_q_tile = make_tensor(smem_ptr(shared_storage.q), TMAQKLayout{})
// 构造 shared memory 侧的 tile

cute::copy(tma_load_q.with(barrier), partition_S(g_q_tile), partition_D(s_q_tile))

这一行就是 TMA 操作:

• 源(S): 全局内存的 g_q_tile
• 目的(D): shared memory 的 s_q_tile
• with(barrier): 绑定到 barrier，完成时自动通知

TMA 硬件会:

1. 根据 descriptor 算出全局内存地址
2. 发起 DMA 请求
3. 数据到达 shared memory 后，自动给 barrier 的计数器减(已传输字节数)
4. 当 barrier 的计数器减到 0，barrier.wait() 解除阻塞

q, k, g_bf16, beta, dt_bias 共 5 次 TMA，都绑定同一个 barrier。

CPU计算与TMA重叠

float a_log_exp = expf(A_log_ptr[head_idx]);
// A_log 是 per-head 的 gate 参数，在等 TMA 时计算(overlap)

同步模式 (Hopper 标准)

__syncthreads();                                    // 确保barrier初始化可见
shared_storage.tma_load_barrier.wait(0);           // 等待TMA完成
fence_view_async_shared();                         // memory fence
__syncthreads();                                   // 确保所有线程看到数据

---

第六部分: L2归一化 (第246-285行)

线程分工

constexpr int ELEMS_PER_THREAD = 8;
constexpr int THREADS_PER_ROW = D / 8 = 128 / 8 = 16;

每行 128 维，16 个线程分工，每线程处理 8 个元素。 256 个线程 / 16 = 16 行，正好覆盖 CHUNK=16 行。

int my_row = threadIdx.x / 16;           // 我负责第几行
int my_col = (threadIdx.x % 16) * 8;     // 我负责的起始列

示例: threadIdx.x = 35

• my_row = 35 / 16 = 2 (第2行)
• my_col = (35 % 16) × 8 = 3 × 8 = 24 (第24-31列)

读数据 + 计算平方和

for i in 0..7:
    qv = bf16_to_f32(q_smem[my_row * 128 + my_col + i])
    kv = bf16_to_f32(k_smem[my_row * 128 + my_col + i])
    q_vals[i] = qv
    k_vals[i] = kv
    q_sq += qv * qv
    k_sq += kv * kv

每个线程累加自己 8 个元素的平方和。

warp shuffle 规约

for delta = 8, 4, 2, 1:
    q_sq += __shfl_xor_sync(0xFFFFFFFF, q_sq, delta)
    k_sq += __shfl_xor_sync(0xFFFFFFFF, k_sq, delta)

__shfl_xor_sync: warp 内的寄存器数据交换。 lane i 和 lane i^delta 互换 q_sq 值，然后各自相加。

delta	效果
8	lane 0-7 和 lane 8-15 交换 → 每个lane有16个元素的平方和
4	相邻4个交换
2	相邻2个交换
1	最终同一行的16个线程都有完整的行平方和

为什么从 delta=8 开始而不是 16? 因为 THREADS_PER_ROW=16，同一行占了半个 warp (lane 0-15)。 delta=8 让 lane 0 和 lane 8 交换(同一行内)，够了。

归一化

q_inv = rsqrtf(q_sq + 1e-6f)    // 1/sqrt(||q||^2 + eps)
k_inv = rsqrtf(k_sq + 1e-6f)

q_smem[...] = BF16(q_vals[i] * q_inv)
k_smem[...] = BF16(k_vals[i] * k_inv)

结果直接写回 shared memory (覆盖原来的 q/k)。 这就是 L2 normalization: x = x / ||x||

---

第七部分: gate激活 + cumsum (第287-319行)

获取实际长度

int actual_len = min(CHUNK, seq_len - local_t * CHUNK);

当前chunk的实际token数(最后一个chunk可能不满16)。

threads 0-127 做 gate + cumsum (每线程一列)

int col = compute_tid;              // 我负责第几列 (0-127)
float dt = dt_bias[col];            // 这列的 gate bias
float sum = 0.0f;

for row in 0..15:
    if row < actual_len:
        g_val = bf16_to_f32(g_bf16[row * 128 + col]) + dt
        g_val = a_log_exp * g_val
        g_val = gate_scale * sigmoid(g_val)
    else:
        g_val = 0.0f                 // padding行的gate=0

    sum += g_val                     // 前缀和
    g_smem[row * 128 + col] = sum    // 存cumsum结果

g_total[col] = sum                   // chunk总gate

gate激活公式:

g_val = gate_scale × sigmoid(A_log_exp × (g_bf16 + dt_bias))

其中:

• gate_scale = lower_bound × log2(e) ≈ -5 × 1.4427 = -7.2135
• sigmoid 用 tanh.approx.f32 实现: sigmoid(x) = 0.5 × tanh(0.5×x) + 0.5
• 最终 g_val 的范围是 [gate_scale, 0] = [-7.2135, 0]
• cumsum 16步后最大绝对值 ≈ 16 × 7.2135 ≈ 115.4

对比fla: fla用单独的 chunk_local_cumsum_vector_kernel 来做 cumsum，并且需要先在外部做 gate 激活。FlashKDA 全部融合在一起。

threads 128-255 清零 k 的 padding 行

for row = actual_len .. 15:
    k_smem[row * 128 + col] = 0

如果 chunk 不满 16 个 token，把 k 的多余行清零。这样后面矩阵乘时自然不会把 padding 算进去。

---

第八部分: g_total 转为 exp2 形式 (第334-339行)

if (compute_tid < 128):
    x = g_total(compute_tid)
    g_total(compute_tid) = ex2_approx_ftz_f32(x)

把 g_total 从 cumsum 值变成 exp2(cumsum) 值。后面 decay_apply 需要用 exp2(g_total) 来计算 k_restored。

ex2_approx_ftz_f32`: PTX 指令 `ex2.approx.ftz.f32

• ex2 = 2^x (base-2 指数)
• approx = 近似(快速, 约23bit精度)
• ftz = flush to zero (极小值直接归零)
• 比 expf(x) 快，因为 expf 需要先乘 log2(e) 再调 ex2

---

第九部分: decay_apply (第341-457行)

最复杂的一段。256个线程把 q, k, g 转换成 q_decayed, k_decayed, k_inv, k_restored。

warp/lane 信息

int lane = compute_tid % 32;    // warp内的lane编号 (0-31)
int warp_id = compute_tid / 32; // warp编号 (0-7)
int g = lane / 4;               // 每4个lane一组，组号 (0-7)
int t = lane % 4;               // 组内编号 (0-3)

命名 g 和 t 是因为数据访问模式:

• g 决定读哪一行: row = m_blk + (warp_id + g) % 8
• t 决定读行内的哪 2 个元素: 第 t×2 和 t×2+1 个

循环参数

N_M = CHUNK / 8 = 2     // 16行分成2个8行块
N_N = D / 64 = 2        // 128列分成2个64列块
N_TILES = 2 × 2 = 4     // 总共4个tile

寄存器数组

float reg_g[4][2]   -- 4个tile，每个tile存2个gate值
BF16  reg_q[4][2]   -- 4个tile的q值
BF16  reg_k[4][2]   -- 4个tile的k值
float reg_gt[4][2]  -- 4个tile的g_total值

第一轮循环: 读数据到寄存器

for m_blk in {0, 8}:         // 两个行块
    for n_blk in {0, 64}:    // 两个列块
        tile_idx = (m_blk/8)*2 + (n_blk/64)   // 0,1,2,3
        row = m_blk + (warp_id + g) % 8       // 每个线程读不同的行

        // 每个线程读q/k/g的2个元素
        for v in 0,1:
            reg_g[tile_idx][v] = g_tile(row, col+t*2+v)
            reg_q[tile_idx][v] = q_tile(row, col+t*2+v)
            reg_k[tile_idx][v] = k_tile(row, col+t*2+v)
            reg_gt[tile_idx][v] = g_total(col+t*2+v)

关键: (warp_id + g) % 8 让不同 warp 的不同 lane-group 读不同的行。这样 256 个线程读完了全部 16×128 = 2048 个 (q,k,g) 值。

每个线程在4个tile中各持有2个元素，共 4×2 = 8 个元素。

同步

__syncthreads();

同步! 接下来要写到 union 的另一半 (k_decayed/q_decayed/k_inv/k_restored)。必须确保所有线程都读完了 q/k/g，因为写入会覆盖它们。

第二轮循环: 计算并写结果

for m_blk, n_blk (同上):
    for v in 0,1:
        g = reg_g[tile_idx][v]                    // cumsum gate值
        q = reg_q[tile_idx][v]                    // 归一化后的q
        k = reg_k[tile_idx][v]                    // 归一化后的k

        exp_cumsum = ex2_approx_ftz_f32(g)        // 2^g = exp2(cumsum_gate)
        r_qd = q * exp_cumsum * scale             // q_decayed = q * exp2(g) * scale
        r_kd = k * exp_cumsum                     // k_decayed = k * exp2(g)

        inv_cumsum = ex2_approx_ftz_f32(-g)       // 2^(-g)
        r_ki = k * inv_cumsum                     // k_inv = k * exp2(-g)
        r_kr = k * inv_cumsum * reg_gt[tile_idx][v]  // k_restored = k * exp2(-g) * exp2(g_total)
                                                   //            = k * exp2(g_total - g)

    // 写到 MMALayout 的 shared memory
    copy(r_qd, s_qd)
    copy(r_kd, s_kd)
    copy(r_ki, s_ki)
    copy(r_kr, s_kr)

注意这里写的是 MMALayout (swizzle布局)，不是 QKLayout (行主序)。因为后面 MMA 操作需要 swizzle 布局。

对应fla的关系

FlashKDA	fla对应	公式
k_decayed	k × beta × exp2(gk)	= k * exp2(g)
q_decayed	qg × scale	= q * exp2(g) * scale
k_inv	用于构造L矩阵	= k * exp2(-g)
k_restored	kg	= k * exp2(g_total - gk)

---

第十部分: 构造 L 和 Mqk 矩阵 (第459-468行)

Tensor L   = make_tensor(smem_ptr(shared_storage.L), LMLayout{});
Tensor Mqk = make_tensor(smem_ptr(shared_storage.Mqk), LMLayout{});
Tensor L_fp16 = make_tensor(smem_ptr(reinterpret_cast<FP16*>(L.data())), LMLayout{});

L 用 fp16 存(和bf16共用同样的 LMLayout 因为都是2字节)。reinterpret_cast 只是改变类型解释，不改变内存。

MMA计算

if (compute_tid < 32) {
    mma_m16n16_bf16bf16fp16_1warp(k_decayed, k_inv, L_fp16, compute_tid);
} else if (compute_tid >= 32 && compute_tid < 64) {
    mma_m16n16_bf16bf16bf16_1warp(q_decayed, k_inv, Mqk, compute_tid - 32);
}

Warp	线程	计算	结果类型
warp 0	0-31	L = k_decayed @ k_inv^T	fp16
warp 1	32-63	Mqk = q_decayed @ k_inv^T	bf16

其他 warp 闲着。

mma_m16n16_xxx 内部 (utils.cuh 第146-165行)

• 用 SM80_16x8x16_F32BF16BF16F32_TN 的 MMA atom
• 输入 bf16，累加 fp32，然后转目标精度存
• 一个 16×16 矩阵乘 = 两个 16×8×16 atom (沿N维拼)
• cooperative_gemm 让一个warp协作完成

数学: L_ij = sum_d k_decayed[i,d] × k_inv[j,d]

对比fla: fla在token_parallel kernel里逐token循环计算 Akk 的元素；FlashKDA一次MMA直接算出完整的16×16矩阵。

为什么L用fp16而Mqk用bf16? L后面要送进 Neumann 求逆，fp16有10bit尾数(vs bf16的7bit)，求逆过程中误差累积更小。Mqk直接用于最终计算，bf16够用。

---

第十一部分: 下三角化 + INV = I - L (第474-492行)

if (compute_tid < 256):    # 所有线程
    # 每个线程负责L和INV的一个元素
    block_idx, i, j = ... (从compute_tid算出行列)

    # L: 下三角化 + 乘beta
    if i <= j:
        L_fp16(i,j) = 0                                        # 上三角和对角线清零
    else:
        L_fp16(i,j) = L_fp16(i,j) * sigmoid(beta[i])           # 下三角乘beta

    # Mqk: 因果mask
    if i < j:
        Mqk(i,j) = 0                                           # 上三角清零 (对角线保留)

    # INV = I - L
    x = L_fp16(i,j)
    INV_fp16(i,j) = (i == j) ? (1 - x) : (-x)

256个线程处理 16×16 = 256 个元素，正好一对一。

对比fla:

• fla在token_parallel kernel里，Akk对角线上是1，Akk(i,j) = sum_d k[i]×k[j]×exp(g_i-g_j) × beta[j] (j<i)
• 然后在inter_solve_fused里做 I - Akk
• FlashKDA这里 L = k_decayed @ k_inv^T 已经包含了 exp(g_i-g_j) 的效果
• 再乘 sigmoid(beta) 就完成了

注意: beta的sigmoid是在这里才做的(K1开头TMA加载的是原始logits)。fla里beta是在外部提前sigmoid过的。

---

第十二部分: Neumann 级数求逆 (第494-498行)

neumann_inv_fused_1warp(L_fp16, INV_fp16, INV, compute_tid);

只有线程 0-31 (一个warp) 实际计算，其他线程跳过。

算法 (utils.cuh 第189-312行)

L^2 = L x L           # MMA
INV += INV x L^2      # MMA
L^4 = L^2 x L^2       # MMA
INV += INV x L^4      # MMA
L^8 = L^4 x L^4       # MMA
INV += INV x L^8      # MMA

输入: L (严格下三角, fp16), INV = I - L (fp16) 输出: INV_bf16 = (I-L)^{-1} (bf16)

数学原理

要求 (I + L)^{-1}

Neumann级数: (I + L)^{-1} = I - L + L^2 - L^3 + ... - L^{15} (L是16×16严格下三角，L^{16} = 0，级数有限项，精确!)

倍增法加速:

INV_0 = I - L
INV_1 = INV_0 + INV_0 x L^2 = (I-L)(I + L^2)
INV_2 = INV_1 + INV_1 x L^4 = (I-L)(I + L^2)(I + L^4)
INV_3 = INV_2 + INV_2 x L^8 = (I-L)(I + L^2)(I + L^4)(I + L^8)

展开: (I-L)(I+L^2)(I+L^4)(I+L^8) = I - L + L^2 - L^3 + ... - L^{15} → 这是 (I+L)^{-1} 的精确展开 (因为 L^{16}=0)

关键优化 — 全在寄存器里算

每个 16×16 MMA 的操作数用 uint32_t[4] 表示 (每个 lane 持有 4 个 fp16 值)

transpose_u32x4: 用 SM75_U32x1_MOVM_T 在寄存器内转置

• A操作数格式 → B操作数格式
• 不需要写回 shared memory!

mma_16x16: 两个 SM80_16x8x16_F16F16F16F16_TN 拼成 16×16

add_fp16x2_u32x4: fp16x2 向量加法 (__hadd2)

最后: 把 fp16 结果转为 bf16 写回 INV smem。

---

第十三部分: TMA存到workspace (第499-569行)

if (threadIdx.x == 0):
    int ws_idx = head_idx * total_tiles + global_tile_idx;

workspace 按 [H × total_tiles, ...] 排列，ws_idx 是当前tile的全局索引。

6次TMA store

每次的模式相同:

1. 构造全局 tensor 描述
2. 算出目标偏移
3. 构造 smem 侧的 tile
4. cute::copy(tma_store_xxx, S, D) — 发起TMA store
5. tma_store_arrive() — 通知硬件"有一个store要做"

存储的6个中间结果:

输出	形状	大小	含义
k_decayed	[16,128] bf16	4KB	k × exp2(cumsum_gate)
q_decayed	[16,128] bf16	4KB	q × exp2(cumsum_gate) × scale
k_restored	[16,128] bf16	4KB	k × exp2(g_total - cumsum_gate)
g_total	[128] fp32	512B	exp2(chunk总gate)
INV	[16,16] bf16	512B	(I - L)^{-1}
Mqk	[16,16] bf16	512B	q_decayed @ k_inv^T

每个tile总workspace = 3×4096 + 512 + 512 + 512 = 13824 字节 ≈ 13.5KB

等待完成

tma_store_wait<0>();      // 等待所有TMA store完成 (<0>表示等到剩余0个未完成)
__syncthreads();          // 最终同步

---

第十四部分: K1 总结

输入

输入	来源
q, k, g	全局内存 (TMA加载)
beta, dt_bias, A_log	全局内存 (TMA加载)

计算流程

1. L2归一化 q, k               (256线程并行)
2. gate激活 + cumsum            (128线程, 每线程一列)
3. exp2(g_total)                (128线程)
4. 计算 k_decayed, q_decayed, k_inv, k_restored  (256线程)
5. L = k_decayed @ k_inv^T      (1个warp, fp16)
   Mqk = q_decayed @ k_inv^T    (1个warp, bf16)
6. 下三角化 + 乘beta + INV = I - L  (256线程)
7. Neumann求逆: INV = (I-L)^{-1}    (1个warp, fp16→bf16)

输出 (TMA存到workspace)

k_decayed, q_decayed, k_restored, g_total, INV, Mqk

这些workspace数据会被 K2 kernel 读取，用于chunk间的隐状态递推。

对应fla中的步骤

FlashKDA K1	fla对应
全部融合	l2norm + gate激活 + cumsum + Step1(token_parallel) + Step2(inter_solve, 矩阵求逆) + Step3(recompute_w_u的部分)

附录：decay_apply 线程映射详解

文件位置: fwd_kernel1.cuh 的 decay_apply 部分

256个线程从 shared memory 读取 q/k/g，计算 q_decayed/k_decayed/k_inv/k_restored，写回到 shared memory 的 union 复用空间。

---

一、256个线程的编号规则

int lane = compute_tid % 32;    // warp内编号 0-31
int warp_id = compute_tid / 32; // warp编号 0-7 (256线程=8个warp)
int g = lane / 4;               // 组号 0-7 (每4线程一组)
int t = lane % 4;               // 组内编号 0-3

每个warp内部:

lane	0	1	2	3	4	5	6	7	8	9	10	11	…	28	29	30	31
g	0	0	0	0	1	1	1	1	2	2	2	2	…	7	7	7	7
t	0	1	2	3	0	1	2	3	0	1	2	3	…	0	1	2	3

8个warp × 每warp8组 = 64组，每组4线程，总 64×4 = 256 线程

---

二、16×128 矩阵切成 4 个 tile

CHUNK=16, D=128

N_M = CHUNK/8 = 2   行方向切2块
N_N = D/64    = 2   列方向切2块
N_TILES = 4

tile 布局:

            列 0         列 63   列 64        列 127
          +-------------+     +-------------+
行 0      |             |     |             |
行 1      |  tile 0     |     |  tile 1     |
...       |  8行x64列   |     |  8行x64列   |
行 7      |             |     |             |
          +-------------+     +-------------+
行 8      |             |     |             |
行 9      |  tile 2     |     |  tile 3     |
...       |  8行x64列   |     |  8行x64列   |
行 15     |             |     |             |
          +-------------+     +-------------+

tile_idx 计算:

tile_idx = (m_blk/8) * 2 + (n_blk/64)

m_blk=0,  n_blk=0  -> tile_idx=0
m_blk=0,  n_blk=64 -> tile_idx=1
m_blk=8,  n_blk=0  -> tile_idx=2
m_blk=8,  n_blk=64 -> tile_idx=3

循环顺序: tile0 → tile1 → tile2 → tile3

每个线程每次循环取2个元素，4次循环共取 4×2 = 8 个元素

---

三、每线程负责的行和列

int row = m_blk + ((warp_id + g) % 8);
int col_base = n_blk + g * 8;

• g 同时决定行和列段:

• 列段: g=0 → col[0…7], g=1 → col[8…15], …, g=7 → col[56…63]

• 行: (warp_id + g) % 8 做循环移位

单个warp (warp0) 的分配:

	段0 col0-7	段1 col8-15	段2 col16-23	段3 col24-31	段4 col32-39	段5 col40-47	段6 col48-55	段7 col56-63
row0	w0,g=0
row1		w0,g=1
row2			w0,g=2
row3				w0,g=3
row4					w0,g=4
row5						w0,g=5
row6							w0,g=6
row7								w0,g=7

warp0 走对角线!

warp1 (row = (1+g)%8) 偏移一格:

	段0 col0-7	段1 col8-15	段2 col16-23	段3 col24-31	段4 col32-39	段5 col40-47	段6 col48-55	段7 col56-63
row1	w1,g=0
row2		w1,g=1
row3			w1,g=2
row4				w1,g=3
row5					w1,g=4
row6						w1,g=5
row7							w1,g=6
row0								w1,g=7

---

四、8个warp叠加: 循环移位矩阵

全部8个warp叠加后，每个格子恰好被一个warp负责:

	段0	段1	段2	段3	段4	段5	段6	段7
row0	w0	w7	w6	w5	w4	w3	w2	w1
row1	w1	w0	w7	w6	w5	w4	w3	w2
row2	w2	w1	w0	w7	w6	w5	w4	w3
row3	w3	w2	w1	w0	w7	w6	w5	w4
row4	w4	w3	w2	w1	w0	w7	w6	w5
row5	w5	w4	w3	w2	w1	w0	w7	w6
row6	w6	w5	w4	w3	w2	w1	w0	w7
row7	w7	w6	w5	w4	w3	w2	w1	w0

循环移位矩阵! 保证同一时刻每行每列段只有一个warp在访问。

---

五、一个格子 (1行×8列) 内4线程的分工

每个格子 8 列，由同组的 4 个线程 (t=0,1,2,3) 瓜分，每线程 2 列:

格子: row=R, col_base=C (8个元素)

  col: C+0  C+1  C+2  C+3  C+4  C+5  C+6  C+7
       \_____/   \_____/   \_____/   \_____/
        t=0       t=1       t=2       t=3
       2元素     2元素     2元素     2元素

---

六、local_tile 图解

第一步: local_tile(g_tile, (1,8), make_coord(row, col_tile))

g_tile [16行][128列]:

       col_tile: 0     1     2     3    ...   15
                8列   8列   8列   8列        8列
  row 0:       [...]  [...]  [...]  ...
  row 1:       [...]  [...]  [...]  ...
  ...
  row 3:       [tile_g] ...                <-- make_coord(3, 2)
  ...
  row 15:      [...]  [...]  [...]  ...

含义:

• 把 [16,128] 按 (1行, 8列) 粒度切分
• 行方向: 每1行一个tile，共16个，编号0-15
• 列方向: 每8列一个tile，共16个，编号0-15
• make_coord(row, col_tile) = 取第row行、第col_tile个列段
• 结果 tile_g: shape=(1,8)，指向 g_tile[row][col_tile×8 .. col_tile×8+7]

第二步: local_tile(tile_g, (1,2), make_coord(0, t))

tile_g: [g[3][16], g[3][17], g[3][18], g[3][19], g[3][20], g[3][21], g[3][22], g[3][23]]
         \_____________/     \_____________/     \_____________/     \_____________/
          t=0 的 s_g          t=1 的 s_g          t=2 的 s_g          t=3 的 s_g
          make_coord(0,0)     make_coord(0,1)     make_coord(0,2)     make_coord(0,3)

含义:

• 把 (1,8) 按 (1,2) 切分
• 列方向: 8/2=4个tile，编号0-3
• make_coord(0, t) = 取第0行tile、第t个列tile
• 结果 s_g: shape=(1,2)，指向 shared memory 中的2个连续元素

对于 1D 的 g_total [128]:

vec8_1d = (8)
local_tile(g_total, (8), make_coord(col_tile))
  // 从128元素中按8个一组取第col_tile组，得到8元素

thr2_1d = (2)
local_tile(tile_gt, (2), make_coord(t))
  // 从8元素中按2个一组取第t组，得到2元素

---

七、为什么用循环移位: 避免 bank conflict

Shared memory 有 32 个 bank，每 bank 4字节宽。bf16 元素 2字节，所以每 bank 放 2 个 bf16。

如果 warp 内 32 线程访问同一行连续 128 列:

线程	访问列	bank
0	col0,1	bank 0
1	col2,3	bank 1
…	…	…
31	col62,63	bank 31

完美无冲突!

但如果多线程访问同一列段的不同行:

可能多线程撞同一 bank → 串行化 → 慢!

循环移位保证: 同一 warp 内的 8 组 (g=0…7) 访问不同行、不同列段 → 落入不同 bank → 无冲突

---

八、完整流程总图

Phase A: shared memory 存着 q[16][128], k[16][128], g[16][128] (gate cumsum后)

     +-- 循环 4 个 tile (8x64 each) --+
     |                                  |
     |  每线程读 2 元素到寄存器          |
     |  reg_g[tile][0..1]               |
     |  reg_q[tile][0..1]               |
     |  reg_k[tile][0..1]               |
     |  reg_gt[tile][0..1]              |
     +----------------------------------+
                    |
             __syncthreads()
        (等所有人读完, 释放Phase A空间)
                    |
     +-- 循环 4 个 tile --+
     |                     |
     |  从寄存器计算:       |
     |  q_decayed = q * exp2(g) * scale     |
     |  k_decayed = k * exp2(g)             |
     |  k_inv     = k * exp2(-g)            |
     |  k_restored= k * exp2(-g) * exp2(gt) |
     |                     |
     |  写回 Phase B shared memory          |
     +---------------------+

Phase B: shared memory 现在存着 q_decayed, k_decayed, k_inv, k_restored
         (与Phase A共用同一片物理空间, union)

---

九、计算公式

q_decayed[row][col]  = q[row][col] × exp2(g[row][col]) × scale
k_decayed[row][col]  = k[row][col] × exp2(g[row][col])
k_inv[row][col]      = k[row][col] × exp2(-g[row][col])
k_restored[row][col] = k[row][col] × exp2(-g[row][col]) × exp2(g_total[col])
                     = k[row][col] × exp2(g_total[col] - g[row][col])

代码实现:

float g = reg_g[tile_idx][v];
BF16 exp_cumsum = BF16(ex2_approx_ftz_f32(g));    // exp2(g)
r_qd = q * exp_cumsum * scale;                    // q_decayed
r_kd = k * exp_cumsum;                            // k_decayed

BF16 inv_cumsum = BF16(ex2_approx_ftz_f32(-g));   // exp2(-g)
r_ki = k * inv_cumsum;                            // k_inv
r_kr = k * inv_cumsum * BF16(reg_gt[tile_idx][v]); // k_restored

注意: reg_gt 存的是 exp2(g_total[col])，在 gate+cumsum 阶段已经算好。 所以 k_restored = k × exp2(-g) × exp2(g_total) = k × exp2(g_total - g)
